John Deere Welderator

Published in the March 2012 Issue Published online: Mar 06, 2012
Viewed 288 time(s)

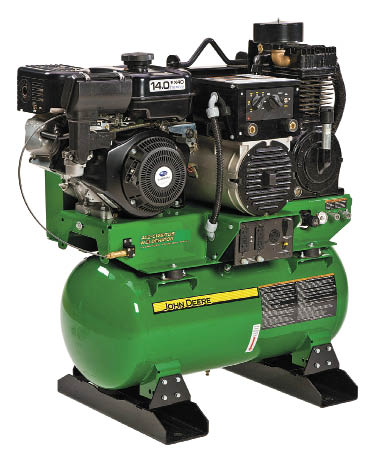

John Deere WelderatorThe John Deere Welderator features an industrial Subaru overhead cam/overhead valve, 404cc engine with electric start on a powder-coated ASME-coded 30-gallon receiver tank, mounted on a heavy-duty 3/16-inch base plate that reduces vibration. The unit weighs 585 lbs. empty and is 46 inches long by 22 inches wide and 47 inches high.

When operated in generator mode, the unit provides 5,000 watts maximum output through two 120V, 20-amp receptacles. Users can select two speeds: idle down for use with the air compressor and full-throttle to power the welder and for electric power generation.

The compressor pump is a high-quality, two-stage compressor with a splash-lubricated, cast-iron crankcase and durable stainless-steel braided discharge hose. It is capable of generating airflow at 16.3 CFM at 100 psi and 15.7 CPM at 175 psi.

In welder mode, the Welderator can produce a 50-170 amp arc, suitable for most on-farm welding needs. The duty cycle (10-minute run time) is 150 amps at 100 percent power.

Visit JohnDeere.com.
